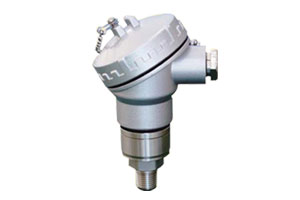

PA-840 / PA-848
雙(shuang)隔膜-壓力傳送器 |
|
|
|
|
|
|
| 技術參數 |
| 型號 |
PA-840 |
PA-848 |
| 操作溫度 |
Ta (No freezing) : -20~80℃ /
Pressure port : -20~100℃ |
Ta (No freezing) : -20~70℃ /
Pressure port : -20~100℃ |
| 輸出電壓 |
1~5V |
4~20ｍA |
| 工作電壓 |
10.8~26.4V DC (including ripple) |
21.6~26.4V DC (including ripple) |
| 消耗電流 |
20ｍＡ maximum |
--- |
| 負載電阻 |
--- |
500Ω maximum |
| 補償溫度 |
0~50℃ |
| 工作濕度 |
35~85%RH (No condensation ) |
| 儲存溫度 |
-20~80℃ |
| 測量介質 |
氣體 / 液體 (與SUS316L、O環（氟橡膠）G2 Fitting 兼容) |
| 壓力接口 |
R 1/4, G 1/4 |
| 防護等級 |
IP67 |
| 壓力規格 |
| 壓力范圍 |
102R |
352R |
103R |
353R |
102A |
| 參考壓力 |
Gauge |
Gauge |
Gauge |
Gauge |
Absolute |
| 額定壓力范圍 |
-0.1~0.1MPa |
-0.1~0.35MPa |
0~1.0MPa |
0~3.5MPa |
0~0.1MPa abs. |
| 最大壓力 |
0.2MPa |
0.7MPa |
2MPa |
4MPa |
0.2MPa abs. |
| 破壞壓力 |
0.3MPa |
1.05MPa |
3MPa |
4.5MPa |
0.3MPa abs. |
|
